J800

download PDF

J800

NXP i.MX8M mini (4x Cortex-A53)

Main Features
  • SMARC 2.0 form factor (82x50mm) and specifications
  • OS: Android, Linux
  • CPU: NXP i.MX8M-mini Quad-core ARM Cortex-A53
  • LPDDR4: 2GB (optional 4GB)
  • eMMC storage: 8GB (or larger)
  • Wide operating temperature
  • (optional) WiFi 802.11b/g/n/ac + Bluetooth 4.2

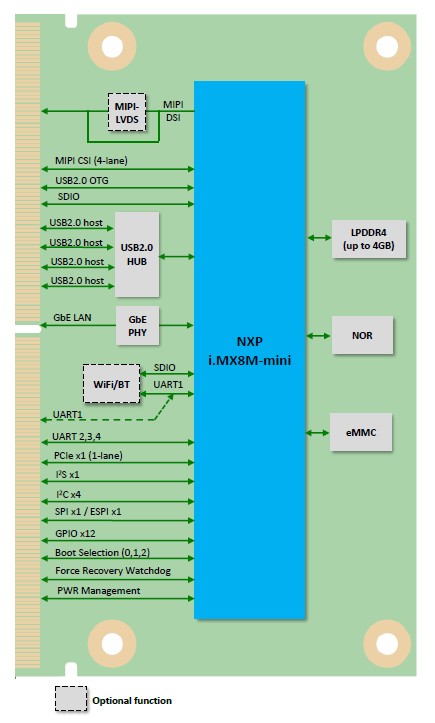

  • SMARC interfaces:

    ♦ MIPI DSI x1 or (optional) dual channel LVDS

    ♦  MIPI CSI x1 (4-lane)

    ♦  USB2.0 OTG x1 / USB2.0 host x4

    ♦ SDIO x1

    ♦ Gigabit Ethernet (MAC and PHY) x1

    ♦ PCIe x1 (1-lane)

    ♦ UART1: 4-wire, shared with wifi/bt

    ♦ UART2/UART4: 2-wire (TXD/RXD)

    ♦ UART3: 4-wire (TXD/RXD/RTS/CTS)

    ♦ GPIO x12

    ♦ I2S x1 / I2C x4 / SPI x1 / ESPI x1

    ♦ Watchdog / Power Management

  • Overview
  • Specifications

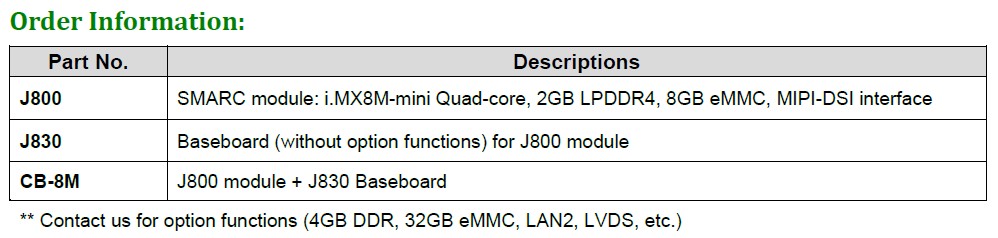

  • Ordering Information

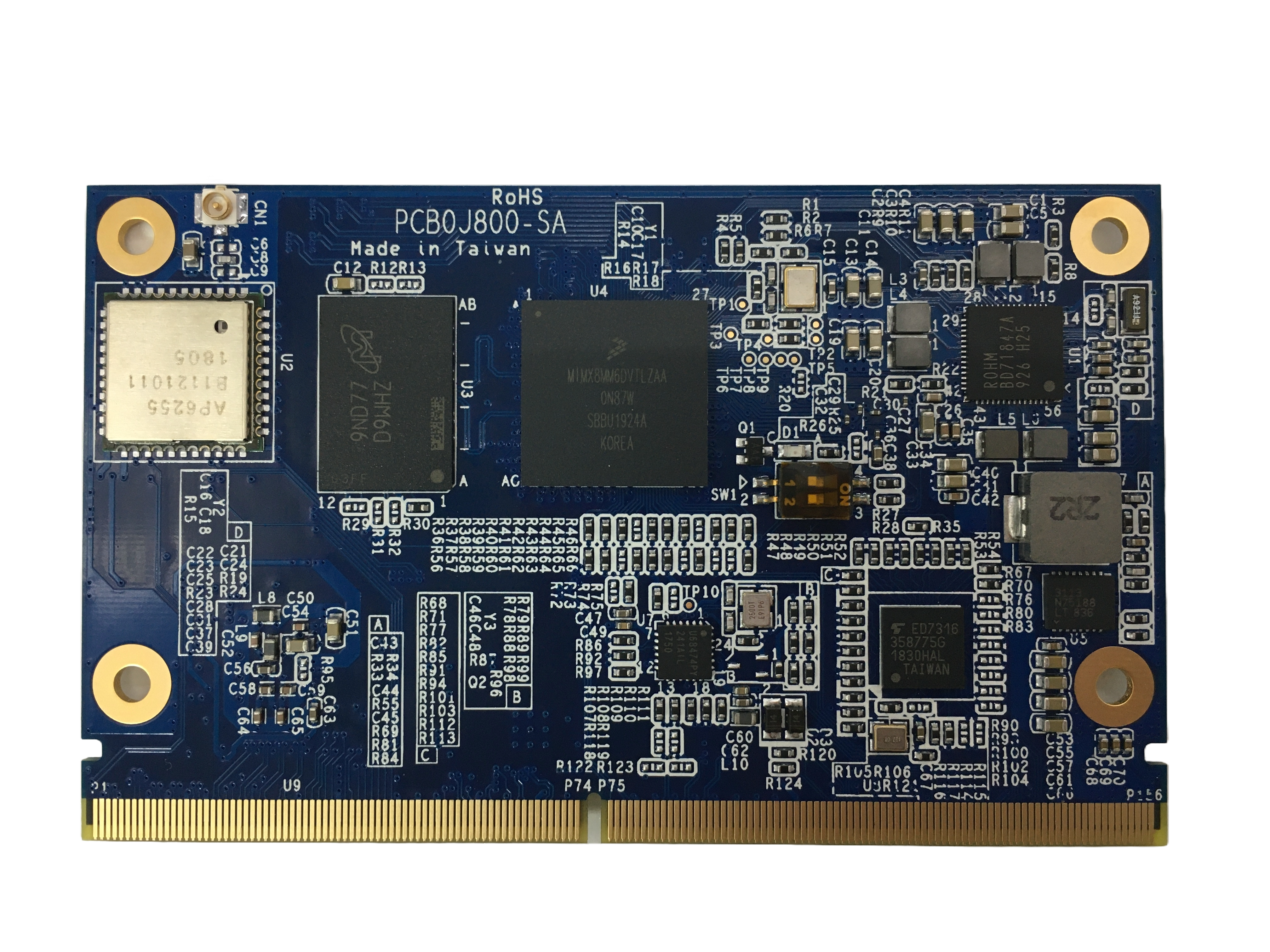

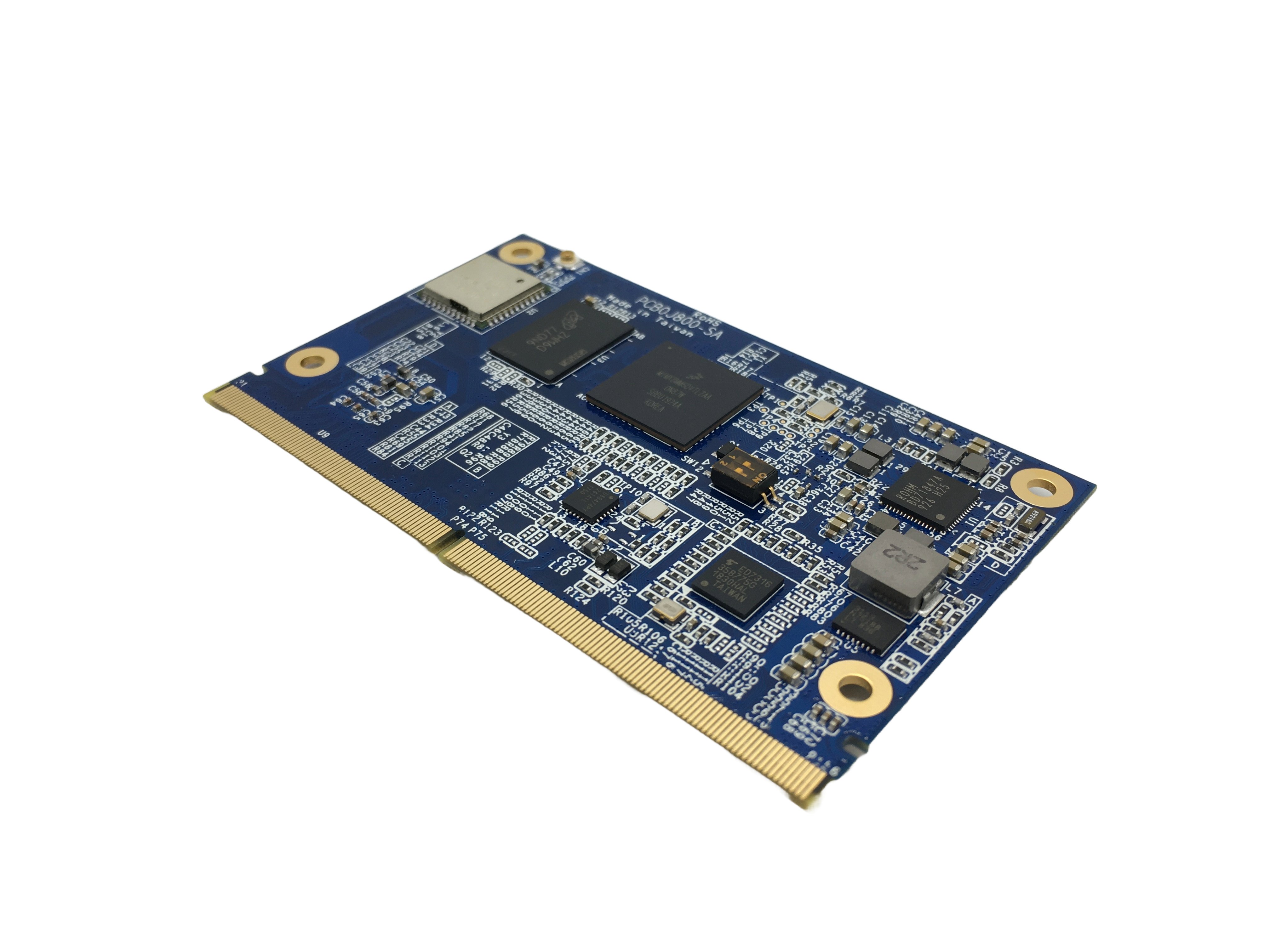

The J800 is a series of NXP iMX8M-mini ARM Cortex-A53 computer module compliant with SMARC 2.0 specifications and form factor. It is a flexible, high performance and low-cost computer platform designed for general embedded applications such as in-vehicle computer, KIOSK, digital signage, industrial computer or HMI.
J800 is intended for customers to quickly design their baseboards for a variety of applications without complicated design efforts.

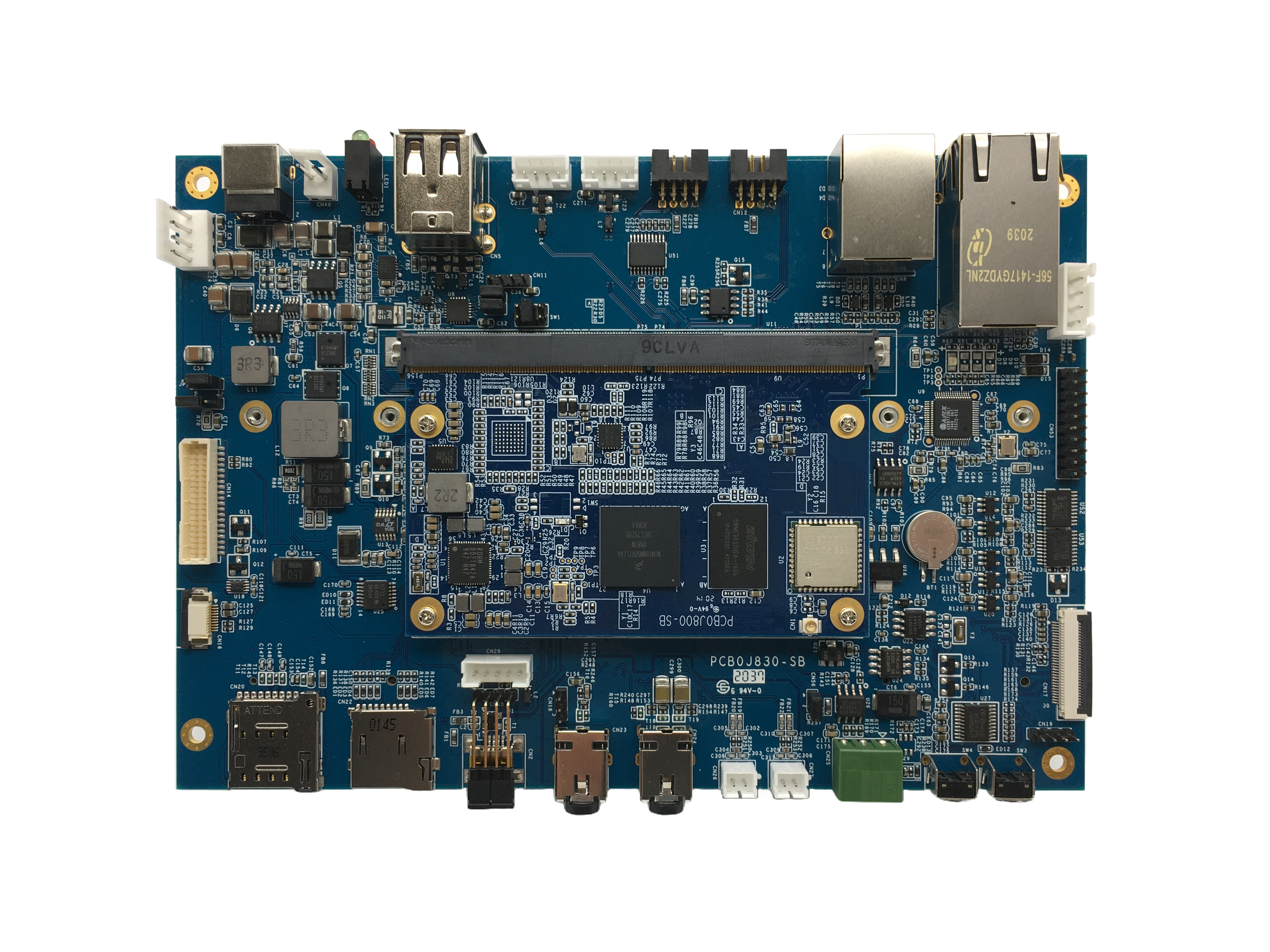

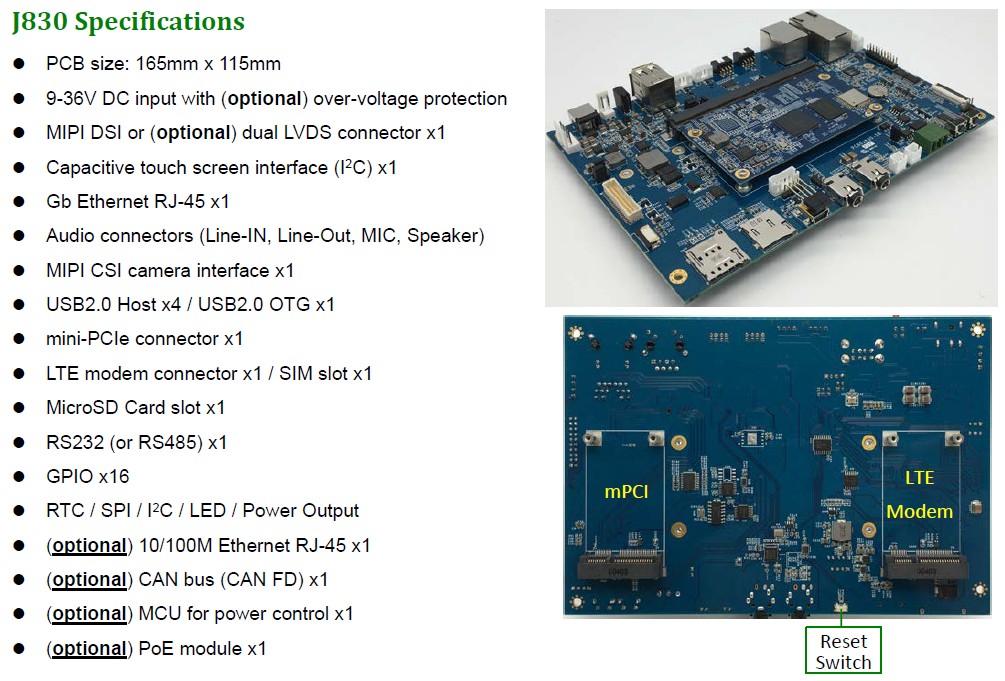

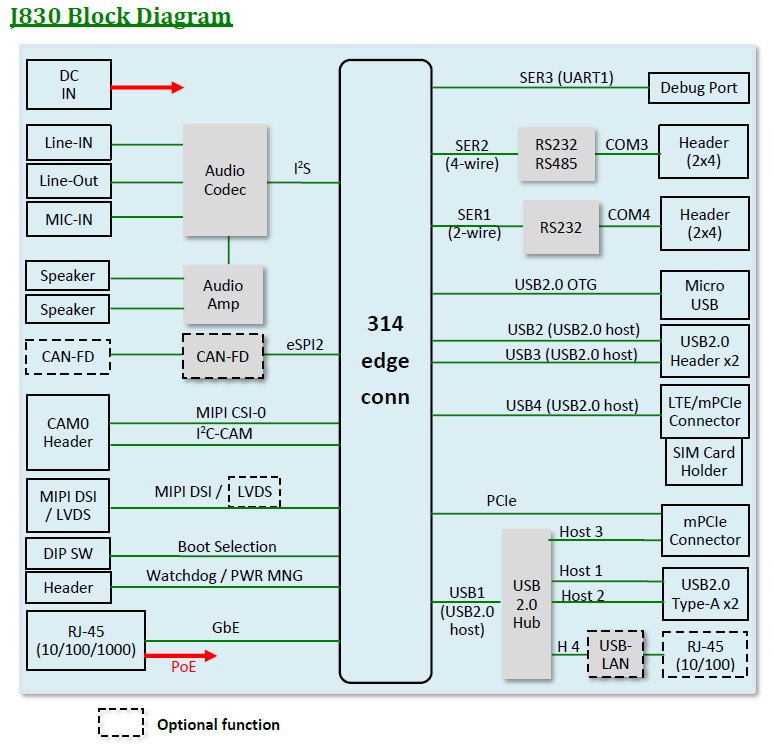

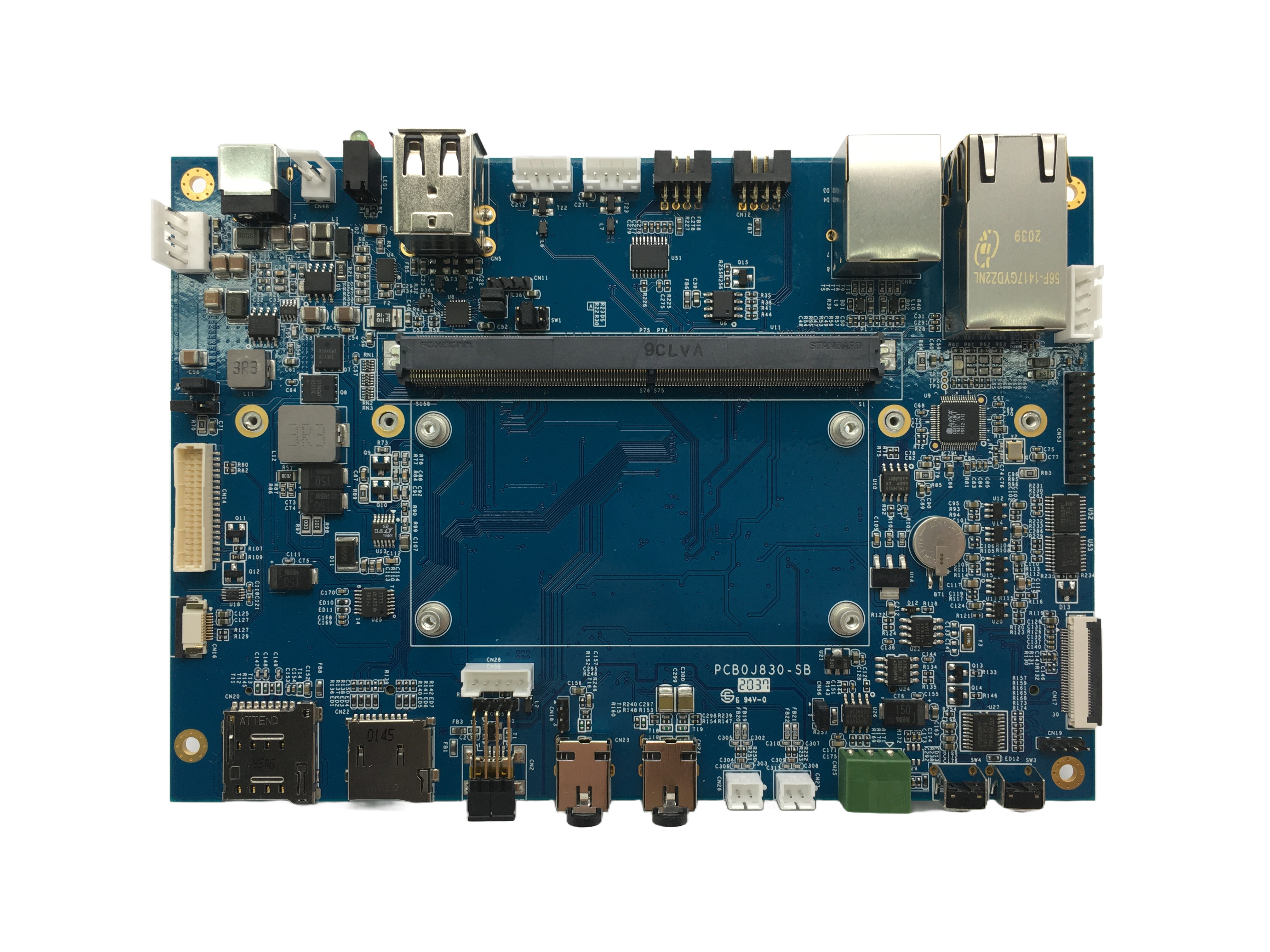

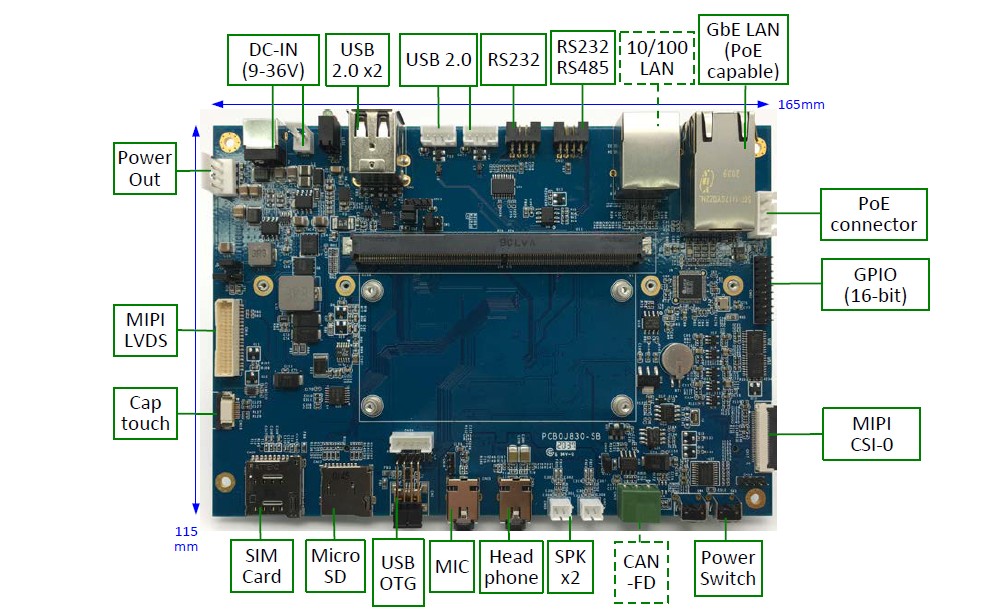

J830 : Base Board for J800 module
