K330

K330 (MIPI-LVDS Bridge)

Main Features

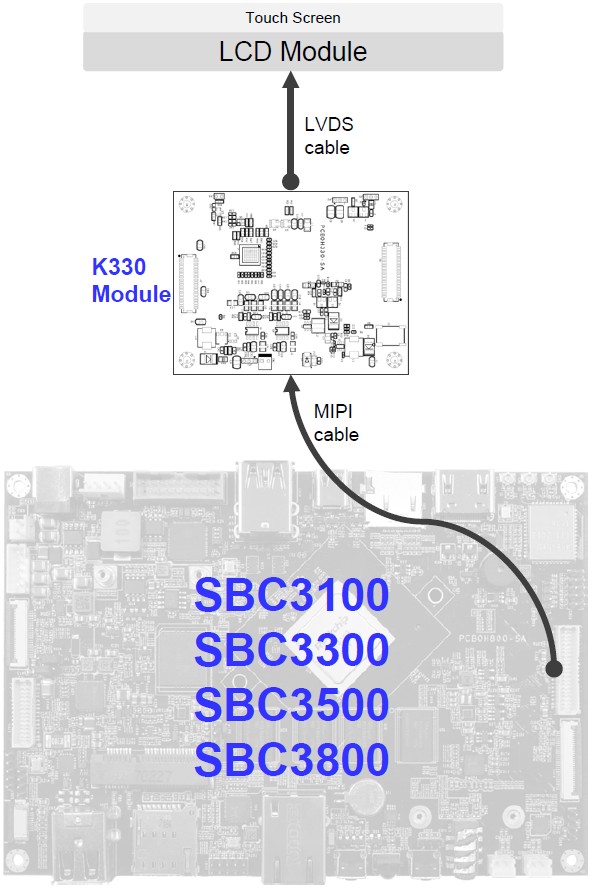

  • Overview

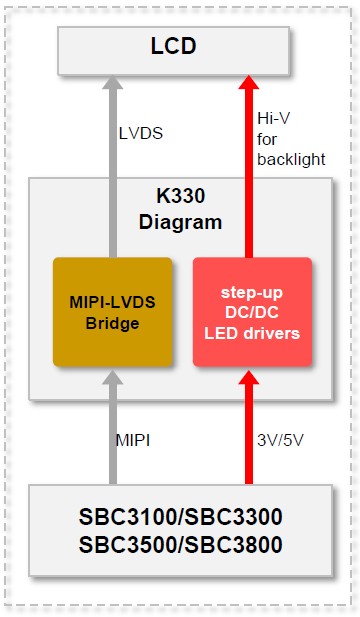

  • Specifications

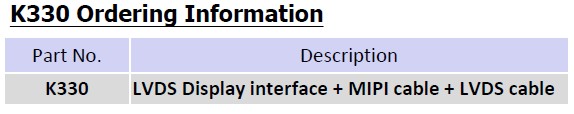

  • Ordering Information

K330 Features:

LVDS Display Interface:

  • Input: 4-data-lane MIPI DSI
  • Output: up to 1920×1200 @ 60Hz  (dual LVDS)

LED Driver:

  • Input: 3.3V, 5V
  • Output: max. 30V for white LEDs

Dimension: <TBD>



Note: K330 module requires customization on software, hardware and cables. Contact us for more information.
