NSD3300-HL-KK3
NSD3300-HL-KK3
Cost-effective solution for HMI
Main Features
• Lower Cost NSD3300 series
• 7-inch / 10-inch TFT LCD
• 64-bit Quad-core Cortex-A35 @1.3Ghz
• New Features IK08 compliant Cover Glass
• High brightness (1000 cd/m2)
• Long backlight lifetime (70K hours)
• 64-bit Cortex-A35 / Cortex-A55 CPU
• Dual display interfaces
• Dual 10/100M/Gb Ethernet (LAN2 optional)
• Multi-band LTE/5G module (optional)
• I/O: USB, RS232/485, GPIO, I2C, SPI
• PoE (Power over Ethernet) capable (optional)
• OS: Android, Ubuntu, Debian
• -20oC~70oC operating temperature
-
Overview
-

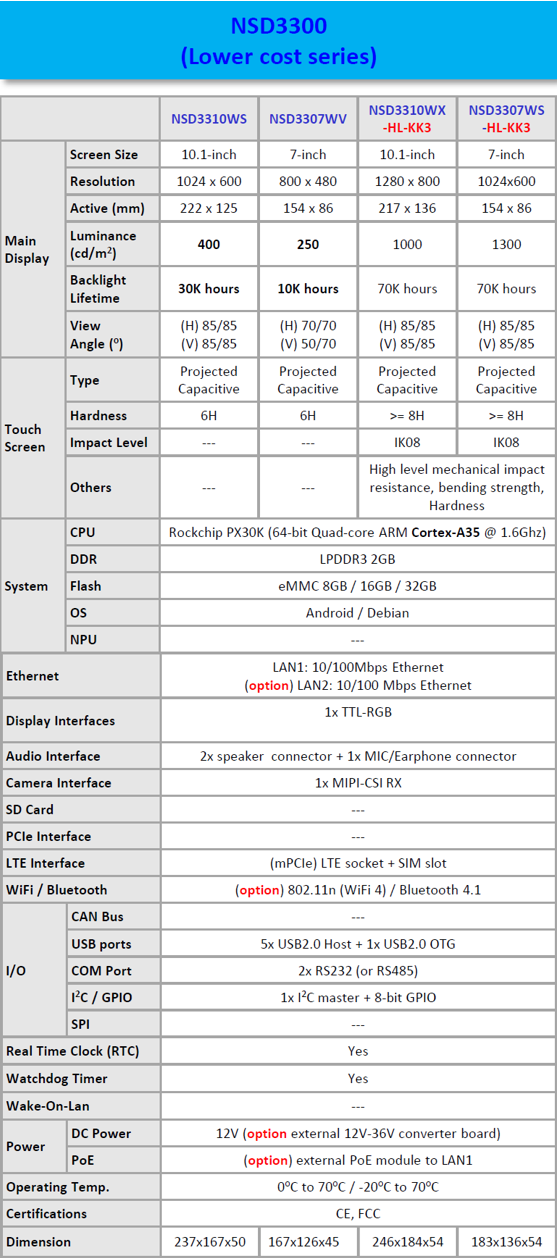

Specifications
-

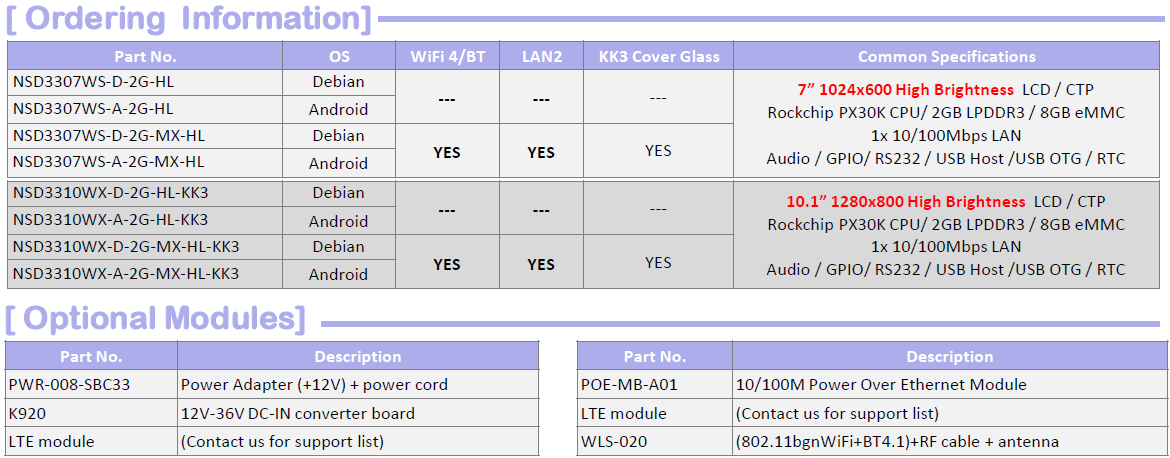

Ordering Information
NSD3300 Typical Applications:
Ø EV Charger
Ø Industrial Equipment
Ø Smart Home Console
Ø Digital Signage
Ø POS, KIOSK
