SBC3300
SBC3300
Quad (64-bit) Cortex-A35 up to 1.3Ghz
Main Features
• Tiny size (100mm x72mm)
• Quad (64-bit) Cortex-A35 up to 1.3Ghz
• Dual Display Interfaces, Touch screen interface
• Touch screen interface
• Dual 10/100Mbps LAN ports (LAN2 optional)
• 5x USB 2.0 Host ports
• 2x RS232 (or RS485) ports
• 8-bit GPIO
• 12V DC Input
• Support POE (Power Over Ethernet) (optional)
• Support Battery Charging (optional)
• Wide Temp Range (-20oC to 70oC)
• Support DIN Rail Mounting (EC3300)
-
Overview
-

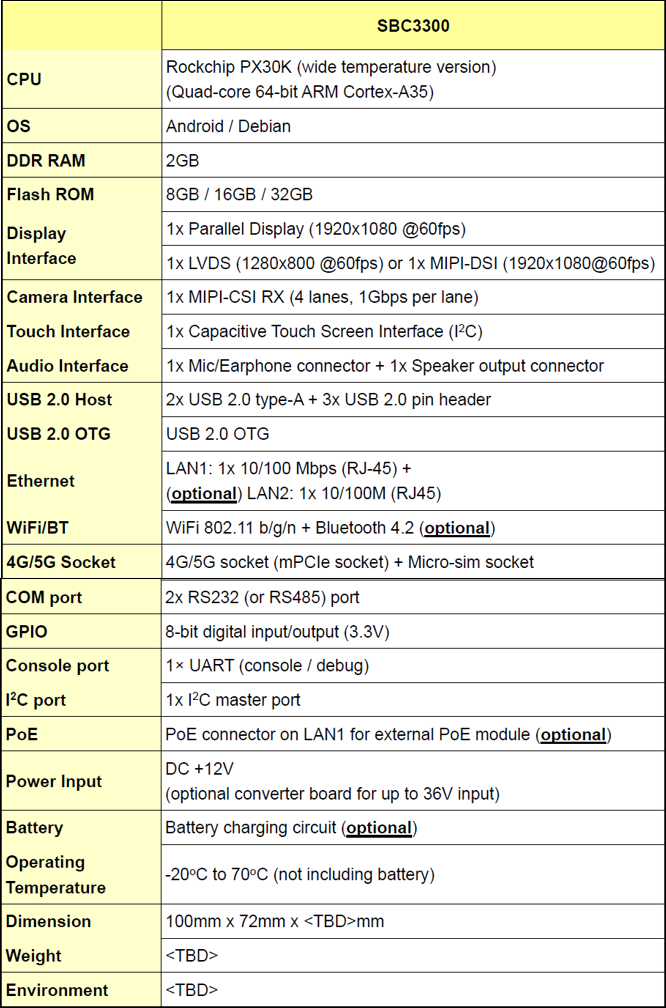

Specifications
-

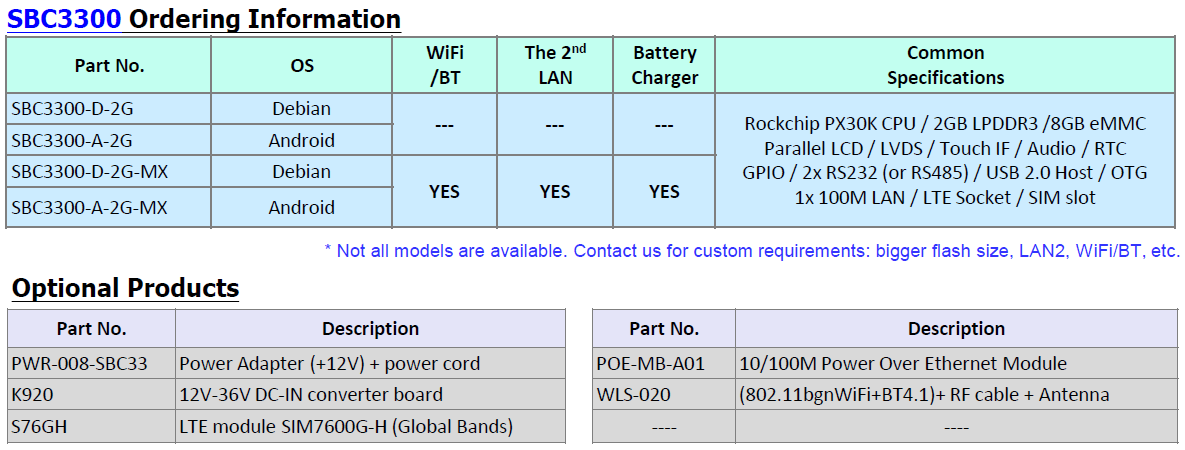

Ordering Information
The SBC3300 is a pico-itx form factor (100mmx72mm) single board computer designed for applications such as digital signage, HMI, POS, Gaming, Set top box, KIOSK and other smart devices. The SBC3300 features a quad-core 64-bit ARM Cortex-A35 processor, 2x 10/100 LAN ports and POE (power over Ethernet) for a wide range of commercial and industrial applications.
Each SBC3300 can be installed in advance with Linux or Android for immediate evaluation.
SBC3300 Typical Applications:
Ø Digital signage
Ø Thin Client
Ø POS (Point of sale)
Ø Set Top Box
Ø Gaming devics
EC3300
EC3300 is a tiny size embedded computer based on SBC3300. The light weight aluminum enclosure enables users to rapidly deploy it in a wide range of applications. EC3300 can be mounted on a DIN rail.
